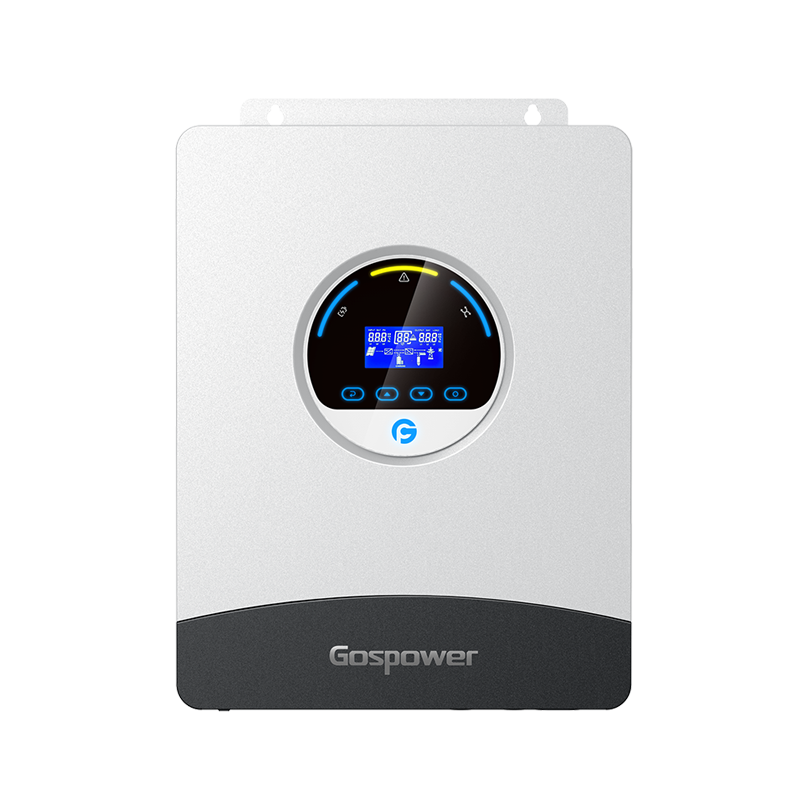

OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 3K6L1/5KL1/6KL1
OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 3K6L1/5KL1/6KL1
OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 3K6L1/5KL1/6KL1

OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 3K6L1/5KL1/6KL1

  • 🤝 Best Value For Money!
  • 🌟 High-quality, Lasts Very Long!
  • ⏳ Very Limited Stock - Get Yours Fast!

₦760,000.00

Get it between: May 30, 2025 - Jun 12, 2025
GPEO- 3K6L1 6KL1
DC Input (PV) Recommended max. PV input power 4000W 6000W
Rated input voltage 380V
MPPT operating voltage range 85V-450V
Number of MPPT 1
Max. number of input strings per MPPT 2
Max. input current per MPPT 27A
Max. short-circuit current per MPPT 35A
AC output (on-grid) Rated output power 3600W
Rated output current 15.6A 26.1A
Rated grid voltage 220/230/240Vac
Rated grid frequency 50/60Hz
THDi ＜3%（@100% Linear load）
Power factor 1
Battery parameters Battery type Lithium /Lead-acid
Battery voltage range 20V~30V 40-60V
Max. charge/discharge current 120A/150A 120A/125A
BMS communication mode RS485
AC output (off-grid) Rated output power 3600W 6000W
Rated output current 15.6A 26.1A
Rated output voltage 220/230/240Vac
Frequency 50/60Hz
Surge power 2*rated power，5s
THDv (@ linear load) ＜3%
Switching time 10ms typical (For UPS) 20ms typical (For Home Appliances)
Efficiency Max. MPPT efficiency 99.90%
Max. efficiency European efficienc N/A
European efficiency N/A
Max. efficiency of charging/discharging [1] 90%~93% 93.00%
Protection   General Parameters Inner protection √Output short circuit protection  √Output overvoltage protection
Surge protection PV: Type III, AC: Type III
IP rating Operating temperature range IP54 -10°C ~ 50°C
Relative humidity range 5%~95%
Max. operating altitude 2000m
Standby self-consumption [2] <10W
Installation type Wall-mounted
Cooling mode Fan cooling
Communication RS232/RS485/Dry contact/WI-FI
Display LCD
MECHANICAL SPECIFICA- TIONS Inverter dimensions (W*H*D) (mm) 345*435*115
Net weight (kg) 12.1 13.5
Shipping dimensions (W*H*D) (mm) 365*455*135
Gross weight (kg) 13.5 15
Loading(20GP/40GP/40HQ)
