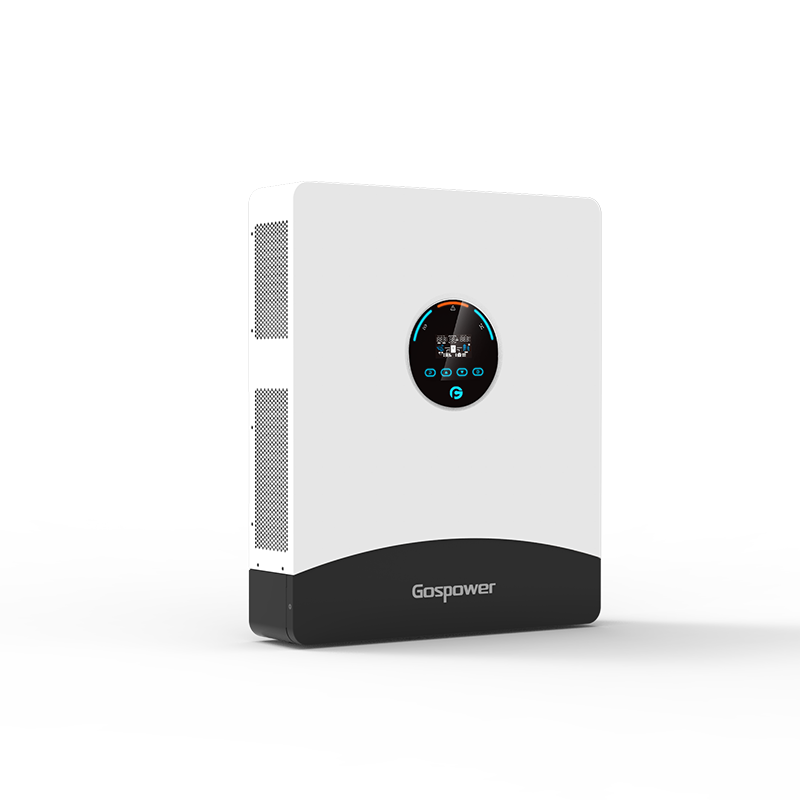

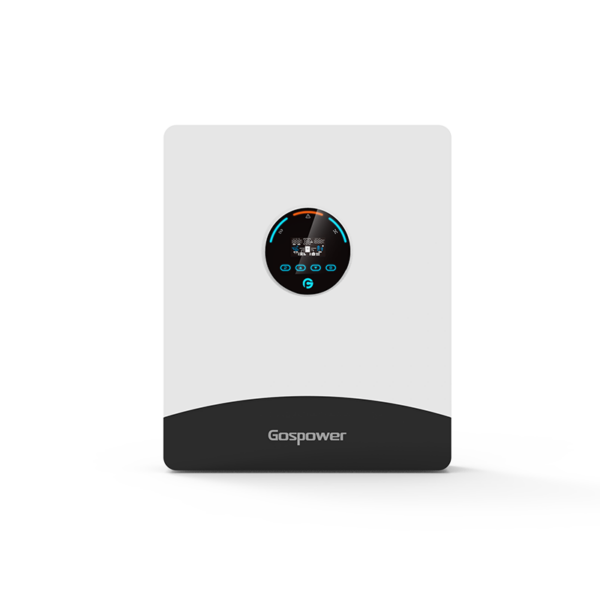

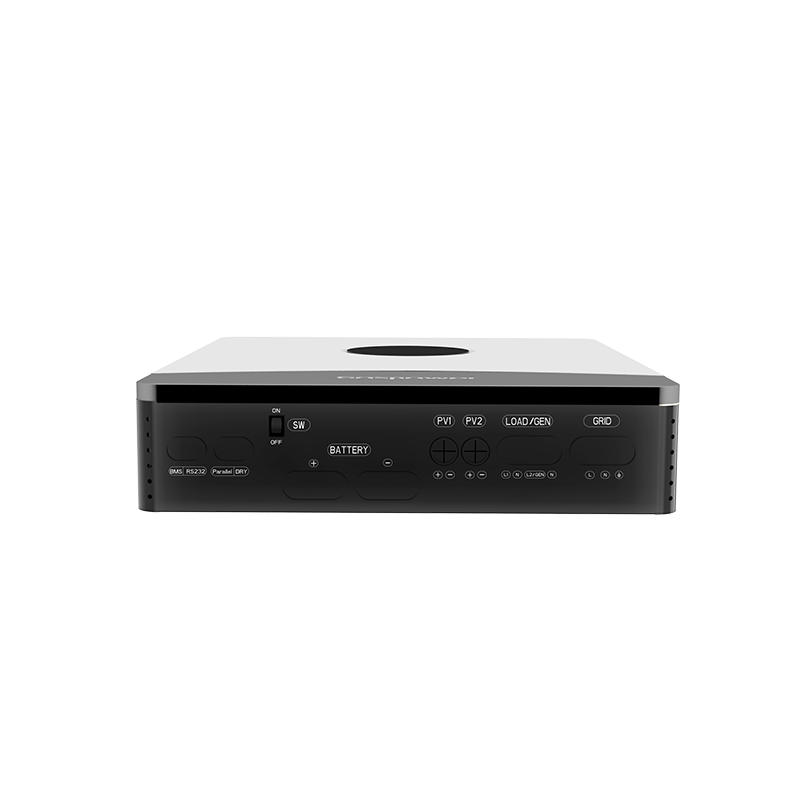

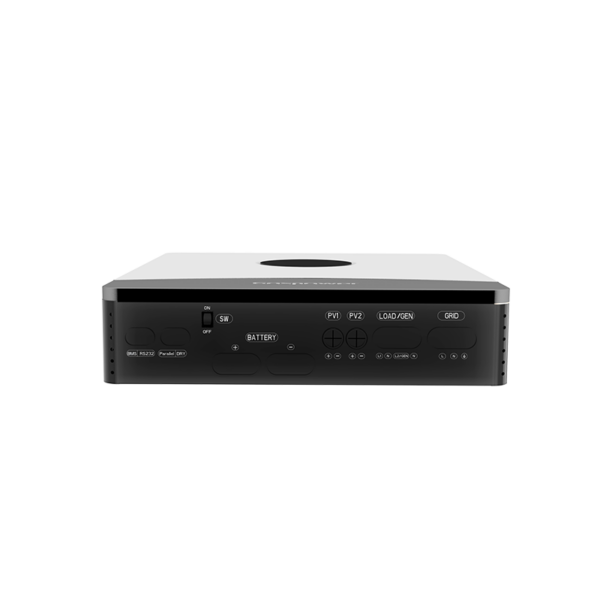

OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 4K6L1/6KL1/12KL1
OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 4K6L1/6KL1/12KL1
OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 4K6L1/6KL1/12KL1

OFF GRID INVERTER GPEO SERIES EU SINGLE PHASE 4K6L1/6KL1/12KL1

  • 🤝 Best Value For Money!
  • 🌟 High-quality, Lasts Very Long!
  • ⏳ Very Limited Stock - Get Yours Fast!

₦760,000.00

Get it between: May 30, 2025 - Jun 12, 2025
Recommended max.PV input power 4000W 6000W 12000W
Max.input voltage(Voc) 500V 500V 500V
MPPT operating voltage range 85V-450V(@85V start up) 85V-450V (@75V start up) 85V-450V (@75V start up)
Number of MPPT 1 1 2
Max.number of input strings per MPPT 1 1 1
Max.input current per MPPT 15A 27A 27/27A
Max.short-circuit current per MPPT 18A 35A 35/35A
Grid (AC  Input) Max input power 5000W 11500W 16000W
Max input current 28A 50A 90A
Rated grid voltage 220/230/240Vac 220/230/240Vac 220/230/240Vac
Rated grid frequency 50/60Hz 50/60Hz 50/60Hz
Acceptable range 170-280Vac(For UPS); 90-280Vac(For Home Appliances) 170-280Vac(For UPS); 90-280Vac(For Home Appliances) 170-280Vac(For UPS); 90-280Vac(For Home Appliances)
Battery Parameters (Bidirection) Battery type LiFePO4/Lead-acid LiFePO4/Lead-acid LiFePO4/Lead-acid
Battery voltage range 20~30Vdc 40~60Vdc 40~60Vdc
Rate Battery Voltage 24Vdc 48Vdc 48Vdc
Max.charge/discharge current 120A/160A 120A/130A 210A/230A
BMS communication mode RS485 RS485 RS485
Back-up Output (AC Output) Rated output power 4000W/4000VA 6000W/6000VA 12000W/12000VA(Twin output)
Rated output current 18.2A 27.3A 54.5A
Rated output voltage / Frequency 220/230/240Vac 50/60Hz 220/230/240Vac 50/60Hz 220/230/240Vac 50/60Hz
Parallel Capacity _ Max. 12 Units Max. 12 Units
Surge power 8000VA 5s 12000VA 5s 24000VA 5s
THDv(@linear load) ＜3% ＜3% ＜3%
Switching time 10ms typical (For UPS) 20ms typical(For Home Appliances)
Efficiency Peak efficiency 95.00% 98.00% 98.00%
Max.MPPT efficiency 99.90% 99.90% 99.90%
Protection Inner protection √ Output short-circuit protection  √ Output overvoltage protection
Surge protection PV:Type III,AC:Type III
IP rating IP54
General Parameters Operating temperature range -10℃ ~ 55℃
Relative humidity range 5%~95% 5%~95% 5%~95%
Max.operating altitude ＞2000m derating ＞2000m derating ＞2000m derating
Standby self-consumption ＜10W ＜10W ＜20W
Installation type Wall-mounted Wall-mounted Wall-mounted
Cooling mode Fan cooling Fan cooling Fan cooling
Communication RS232/RS485/Dry contact/WI-FI RS232/RS485/Dry contact/WI-FI RS232/RS485/Dry contact/WI-FI
Display LCD LCD LCD
Mechanical Specification Inverter dimensions (L*W*H)(mm) 444.7*346.6*120 444.7*346.6*120 630*535*125
Net weight (kg) 9.2 12.4 27
Shipping dimensions (L*W*H)(mm) 560*465*240 560*465*240 745*650*240
Gross weight (kg) 11.4 14.6 30
Warranty Period 3 Years
